Fixtures and Tooling

Precision Fixtures Custom Made!

Lynn Welding builds precision fixtures and tooling for welding, assembly, inspection and machining.

Custom Precision Fixture
Bearing Installation Heater
Fixtures and Tooling
Work holding fixture for 5-axis milling operation.

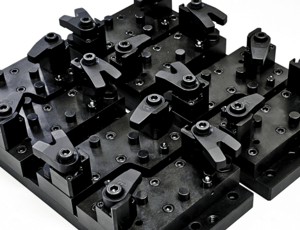

Semi-Automatic work holding fixture with pneumatic clamps.
Work holding fixture for 2-axis milling operation.

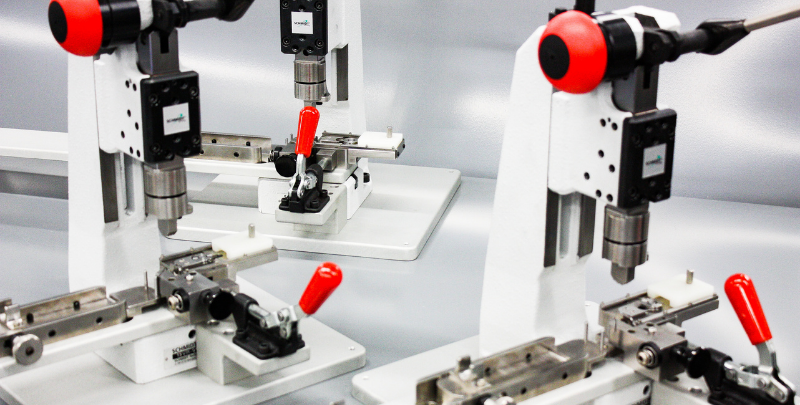

Custom assembly fixture
Semi-automatic insertion fixture built, assembled and programmed by Lynn Welding.
Semi-automatic pin Inserting machine designed, built and programmed by Lynn Welding.

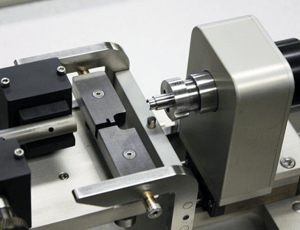

Precision machined components assembled to work as an insertion fixture.
Assembly fixture using high-precision Wire EDM machined components.

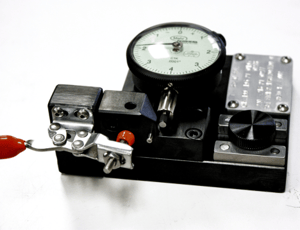

High precision inspection fixtures.
Assembly fixture for high precision assembly.
Manual assembly fixtures using purchased Schmidt presses.
Custom assembly fixture.
8 station de-burring bench.
High precision inspection fixture.
Assembly fixture using high-precision Wire EDM machined components.
Modified vice for specific part holding.

At Lynn Welding, we all know too well the importance of tooling and fixture design and that having a creative approach to a client’s problem is crucial. From part design, tool assembly layout, and detailed tooling design and validation, Lynn Welding streamlines the entire fixtures & tooling development process. Lynn Welding's advanced functionality, step-by-step guidance, and associativity with part designs are a solution to even the most challenging tooling and fixture designs.

Lynn Welding designs and builds fixtures, including:

High Tolerance CNC machining fixtures
Machined component gages
Part qualification test fixtures
Switch tester
Contact Testers
Cable cutter/measure/testers
Feeding systems
Inspection systems
Assembly systems
Micro resistance welding systems (also micro resistance welding services in-house)
Machining services
WIRE EDM services
Assembly Services

Lynn Welding is a manufacturer of custom vertical and horizontal machining fixtures. Available with hydraulic, pneumatic, manual, captured oil-accumulator built into the fixture, and spring clamp with air and hydraulic unclamp actuation options. Our machining fixture capabilities include concept development, design, installation, repair, and refurbishing, and assembly. Provides CAD and detail drawings and commercial items. Suitable for various high-volume manufacturing applications.
